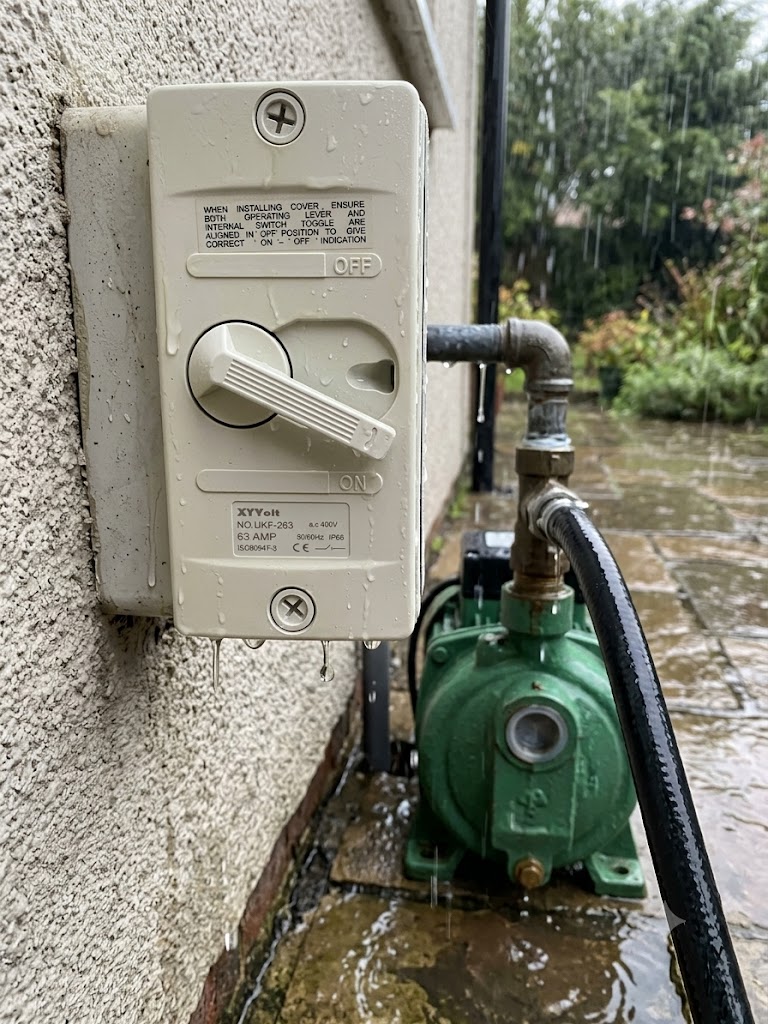

XYVolt UKF-263 Weatherproof Rotary Isolator Switch (63A, 400V AC, IP66)

Short Product Description

The XYVolt UKF-263 Weatherproof Rotary Isolator Switch is a high-performance, heavy-duty safety switch engineered for reliable power isolation in harsh outdoor and industrial environments. Built with a robust IP66-rated enclosure, this 63A isolator switch guarantees maximum protection against heavy rain, water jets, dust, and UV exposure. It is ideal for isolating solar power installations, HVAC equipment, industrial machinery, and outdoor power systems.

Key Features & Benefits

• IP66 Weatherproof & Dust-Tight Protection: Engineered to withstand severe outdoor conditions, including heavy downpours, high-pressure water washdowns, and dusty environments.
• High Load Capacity: Handles up to 63 Amps at 400V AC (50/60Hz), making it suitable for commercial and industrial applications.
• Integrated Safety Lockout Facility: Features a built-in padlock hole in the “OFF” position for Lockout/Tagout (LOTO) maintenance compliance, preventing accidental or unauthorized operation.
• Durable UV-Stabilized Enclosure: Made from high-impact, flame-retardant, and UV-resistant material that won’t degrade under direct sunlight.
• Clear Visual Status Indicators: Prominent, high-contrast ON and OFF markings ensure quick visual verification of power status.
• International Certification: Fully compliant with IEC 60947-3 standards and CE certified for safety and performance assurance.

• Typical Applications

  • Solar PV Systems: AC isolation for solar power inverters and distribution panels.
  • HVAC & Refrigeration: Emergency disconnect for outdoor air conditioning condenser units, chillers, and heat pumps.
  • Industrial & Commercial: Heavy machinery, industrial motors, factory equipment, and conveyor systems.
  • Outdoor & Agricultural: Farm machinery, water pumps, car washes, docks, and outdoor lighting circuits.

  Important Installation & Safety Note

  ⚠️ CRITICAL INSTALLATION WARNING: When installing or replacing the cover, ensure that both the external operating lever and the internal switch toggle are manually aligned in the ‘OFF’ position. Proper alignment is essential to guarantee accurate “ON” / “OFF” visual indication and safe internal switch engagement.
